Monel K500: for Extreme Environments

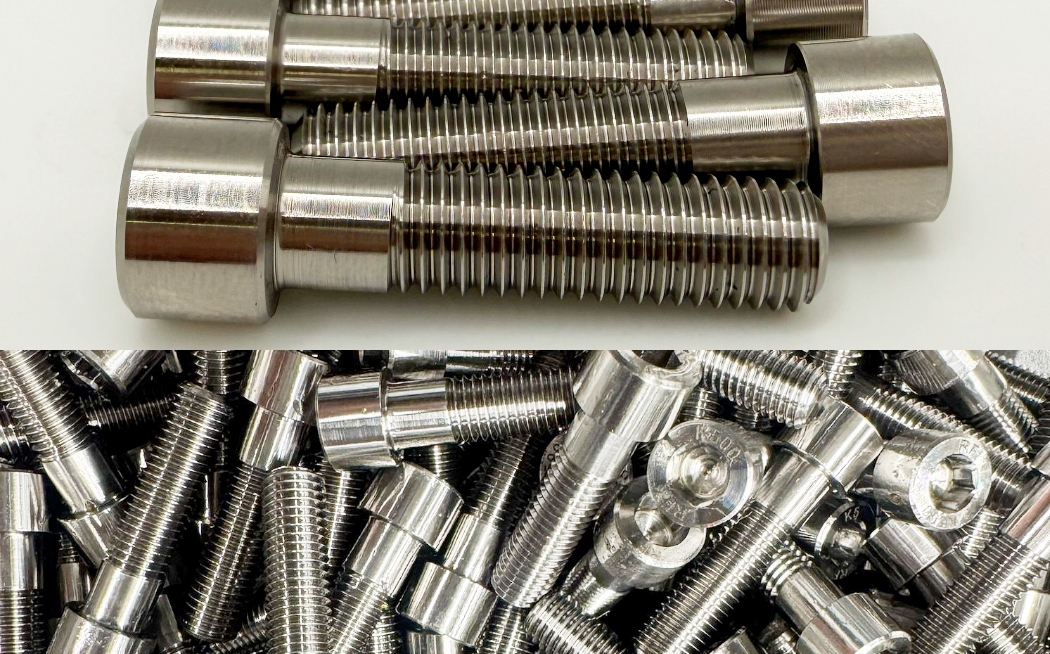

Our latest production of 1/4″ UNF socket cap screws were manufactured from Monel K500, a high-performance nickel-copper alloy engineered for exceptional strength and corrosion resistance in the most demanding of industrial applications.

The Heritage of Monel

Monel alloy has a distinguished history in materials engineering. Invented by American metallurgist Robert Crooks Stanley in 1905 at the International Nickel Company. Monel revolutionised corrosion-resistant applications across marine, chemical processing, and the oil and gas industries.

The name “Monel” reportedly honours company president Ambrose Monell, and the alloy quickly became the gold standard for environments where conventional stainless steels proved inadequate.

Enhanced performance through metallurgical innovation

Monel K500 was subsequently developed to improve upon the mechanical properties of the original Monel 400 composition. This advancement was achieved by adding small, carefully controlled amounts of aluminium and titanium to the established nickel-copper composition. These alloying additions enable the material to be significantly strengthened through a sophisticated heat treatment process known as age hardening or precipitation hardening.

The age hardening process involves solution treating the alloy at elevated temperature, followed by controlled cooling and a secondary ageing treatment. During ageing, fine intermetallic precipitates form throughout the microstructure, dramatically increasing yield strength and hardness whilst maintaining the excellent corrosion resistance inherent to nickel-copper alloys. The result is a fastener material offering approximately twice the tensile strength of annealed Monel 400, combined with superior resistance to stress corrosion cracking.

Performance characteristics

Corrosion Resistance: to seawater, brackish water, hydrofluoric acid, sulphuric acid and alkaline solutions. The high nickel content (approximately 63%) provides immunity to chloride-induced stress corrosion cracking that affects austenitic stainless steels.

Mechanical Strength: age-hardened Monel K500 achieves tensile strengths exceeding 1,100 MPa with yield strengths around 750 MPa, significantly outperforming standard stainless steel fasteners whilst maintaining excellent ductility.

Temperature Performance: maintains mechanical properties from cryogenic temperatures to approximately 480°C, making these fasteners suitable for both arctic offshore installations and elevated-temperature chemical processing equipment.

Magnetic Properties: the non-magnetic characteristics make Monel K500 fasteners ideal for applications requiring non-interference with magnetic instrumentation, navigation equipment, or MRI facilities.

Applications across critical industries

Monel K500 socket cap screws serve diverse applications where material performance directly impacts operational reliability and safety.

Subsea control systems, ROV components, diving equipment, ship propulsion systems, and offshore platform hardware all benefit from Monel K500’s exceptional seawater corrosion resistance and mechanical strength.

Wellhead equipment, valve assemblies, pump components, and downhole tools operating in sour gas environments containing hydrogen sulphide, rely on Monel K500’s resistance to sulphide stress cracking.

Reactor vessels, heat exchangers, distillation columns, and piping systems handling corrosive chemicals utilise Monel K500 fasteners for long-term reliability in aggressive process environments.

Aircraft structural components, engine assemblies, and naval vessels specify Monel K500 for applications requiring high strength-to-weight ratios combined with corrosion resistance.

Nuclear, conventional, and renewable energy facilities employ Monel K500 fasteners in seawater cooling systems, desalination plants and geothermal installations.

Clean-room environments and sanitary systems benefit from Monel’s corrosion resistance and ease of passivation for hygienic applications.

Precision manufacturing and quality assurance

Manufacturing Monel K500 socket cap screws demands specialist expertise and equipment. The alloy’s high nickel content and work-hardening characteristics require careful tool selection, cutting parameters, and machining strategies to achieve dimensional accuracy whilst preserving surface integrity.

Our manufacturing team provides comprehensive technical support for Monel K500 fastener selection and application. Whether you’re specifying components for a unique engineering challenge, require material substitution guidance, or need custom dimensions beyond standard UNF socket cap configurations, we offer the expertise and manufacturing capability to support your project requirements.

For standard configurations, we maintain strategic inventory levels to support Rapid fulfilment. Custom specifications are manufactured to order with lead times dependent upon quantity and complexity.

Contact our technical sales team to discuss your Monel K500 fastener requirements or to explore whether this premium nickel-copper alloy is the optimal solution for your application.
